CODACA Launches CSQX Series Super High Current Power Inductors with Saturation Current up to 280A

Date:

2025-10-20

CODACA has announced the launch of the CSQX series, a new line of super high current power inductors designed to meet the growing demand for low loss, high efficiency, and high power density solutions in industrial control, automotive electronics, and renewable energy systems.

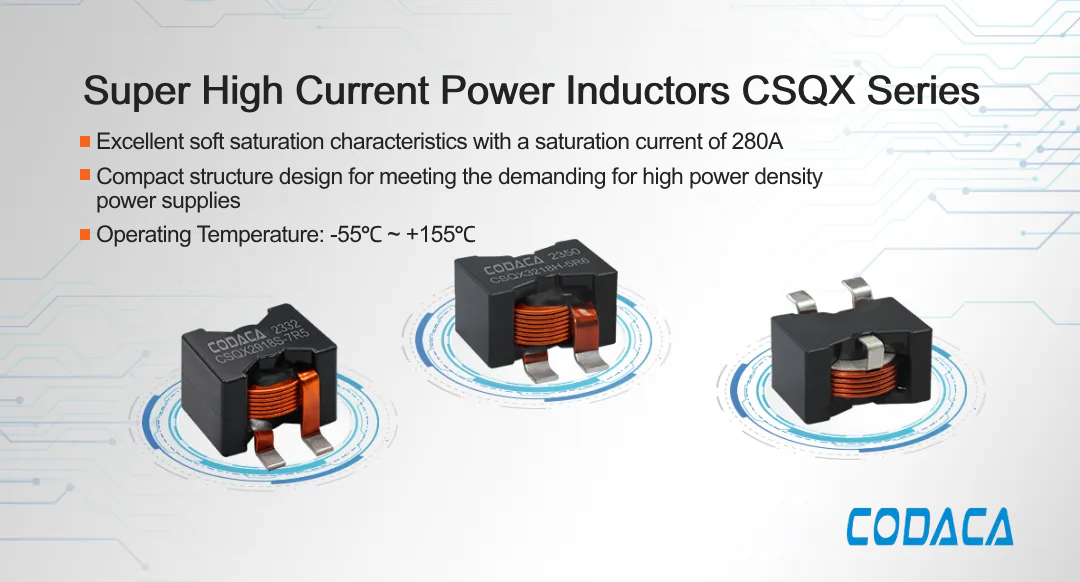

CODACA super high current power inductors CSQX series


The CSQX series adopts CODACA’s proprietary metal magnetic powder core and flat wire winding design, offering extremely low DCR, low core loss, high saturation current, and excellent thermal performance. These features ensure long term stability and efficiency in high current operating environments.

The series offers inductance values from 1.5 μH to 27.0 μH, DCR from 0.50 to 5.20 mΩ, saturation current from 27.0 A to 280.0 A, and temperature rise current from 21.5 A to 75.0 A. Two compact package sizes are available — 28.0×27.0×18.5 mm and 32.0×34.5×18.8 mm — corresponding to six product models: CSQX2918H/L/S and CSQX3218H/L/S.

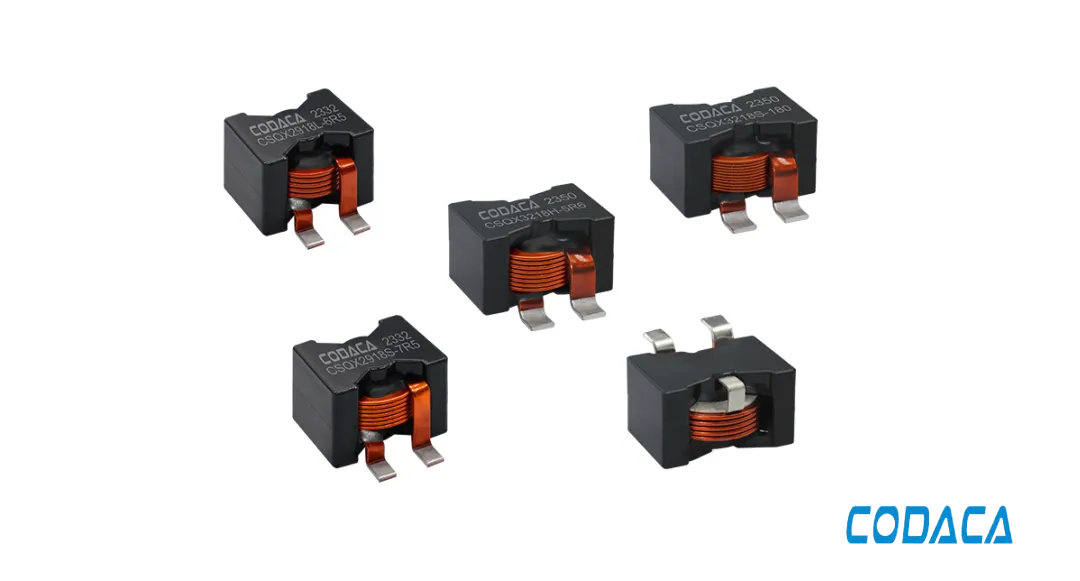

high current power inductors CSQX series


Each performance type offers specific advantages —H for high saturation current, L for low DCR, and S for standard performance, allowing engineers to optimize for different design needs. The CSQX series operates reliably across a –55°C to +155°C temperature range.

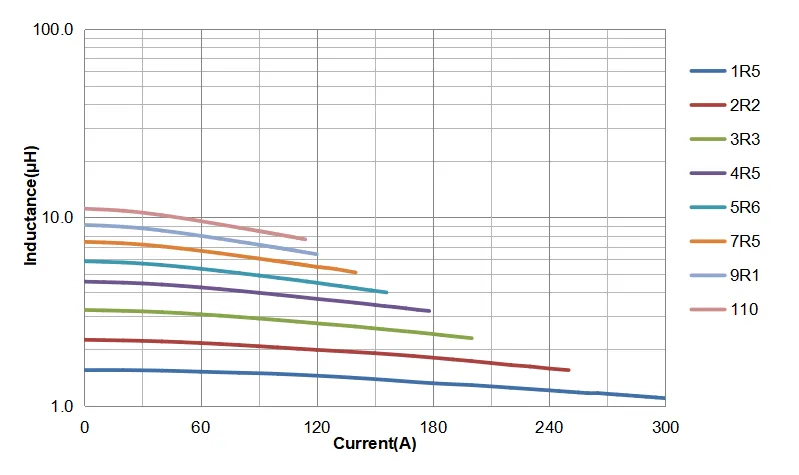

Saturation Current Curve of CSQX3218H

Saturation Current Curve of CSQX3218H


CODACA Launches CSQX Series Super High Current Power Inductors with Saturation Current up to 280A

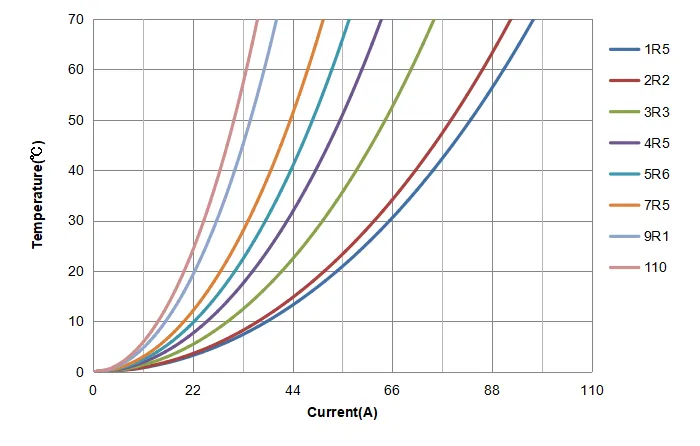

Temperature Rise Current Curve of CSQX3218H


Compared with the CPQX series, the CSQX series delivers higher saturation current, lower resistance, and better thermal performance, while maintaining an equally compact footprint. Its SMD design also contributes to reduced PCB space usage and higher power density.

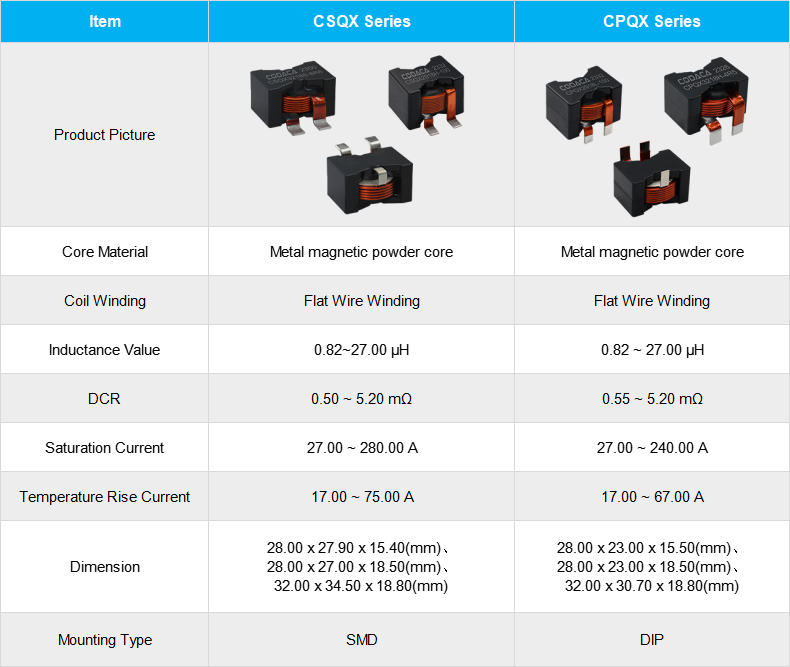

Comparison of CSQX Series and CPQX Series

Comparison of CSQX Series and CPQX Series


1. Features

◾ Excellent DC bias capability to handle instantaneous peak current.

Flat wire winding, achieving very low DC resistance.

The inductance value and DC bias characteristic are little affected by temperature.

Magnetically shielded structure, excellent resistance to electromagnetic interference.

Compact design saves PCB mounting area.


2. Applications

DC-DC converters

High current switching regulators

 Industrial control systems

 Renewable energy

 Automotive electronics


3. Environment Standard

The Super High Current Power Inductors CSQX series features halogen-free, RoHS and REACH compliant.


4. Product Status

As with all parts in CODACA, CSQX series has been in mass production and lead time is 4~8 weeks.
