Solar energy has been widely deployed as a key form of renewable and sustainable power infrastructure transforming to realize carbon neutralizing propagation. Along with the demand for efficiency of power conversion system, selection of magnetic components for photovoltaic solutions becomes more challenging for design engineers in this area. Next, we would like to share with you some key principles of power conversion and magnetics’ solutions in solar energy applications.

**1.Principles of power conversion**

**1.1 Semiconductor foundation**

Photovoltaic cells can provide a large current, while LEDs are limited by their cooling structure and size that can not pass through a large current (burn out). Related diode structures, circuit symbols and equivalent circuits are shown in Fig.1 below:

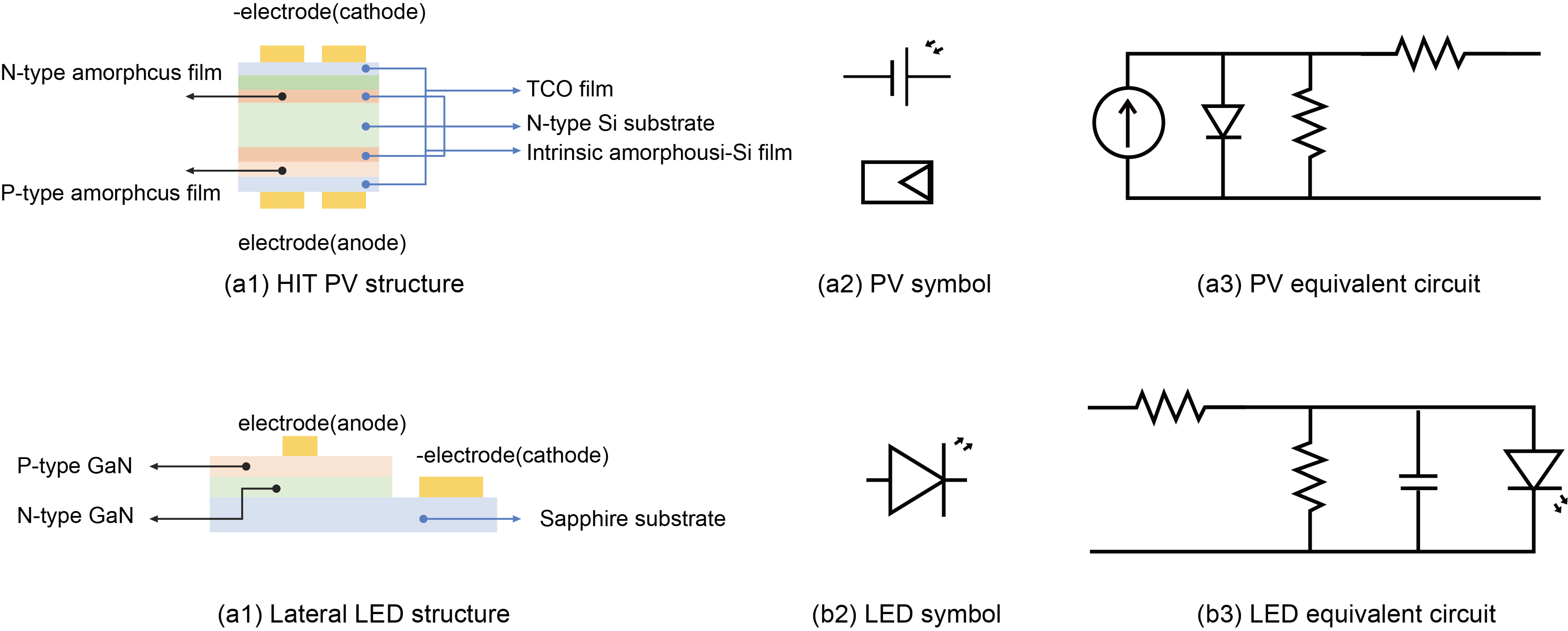

Fig.1 Structure, symbol and equivalent circuit of photovoltaic battery ( HIT ) and LED

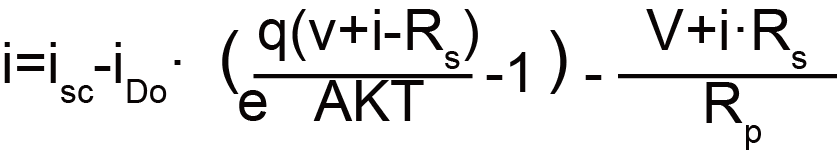

A typical photovoltaic cell (PV) output current is expressed as:

Where:

isc -Excitation current produced by light irradiation;

iDo -Saturation current of PN junction;

q -Electron's charge as 1.6x10-19 C;

K -Boltzmann constant as 1.38X10-23J/K;

A -Ideal constant between 1~2;

T -Temperature of PN junction.

Besides, different switching FETs and diode semiconductors such as MOS, gallium nitride (GaN), silicon carbide (SiC), and IGBT are used with different advantages in cost and performance under different application conditions.

**1.2Main considerations about power conversion in solar energy system**

Grid-connected solar power generation needs to meet specific technical requirements, such as IEEE1547(US.) ENEL 2010 Ed.2.1 (Italy)，EN50438(European) and GB/T 19939-2005, GB/Z 19964-2005 (China).To configure an appropriate grid-connected inverter, the photovoltaic system needs multi-stage power conversion, efficiency control, complete monitoring associated communication system, with necessary functions such as islanding detection and power yield prediction. Typical off-grid and grid-connected photovoltaic power generation systems are shown in Fig.2 below.

Fig.2 Typical off-grid photovoltaic power generation systems

Fig.3 Typical off-grid photovoltaic power generation systems

Safety is more important than efficiency to be considered in grid-connected photovoltaic power generation system, which mainly includes islanding detection, insulation detection, leakage current detection, LVRT and etc.

Fig.4 Principle of islanding detection for grid-connected PV power generation (simplified)

Fig.5 Principle of islanding detection for grid-connected PV power generation (simplified)

**1.3Power conversion types in photovoltaic power generation**

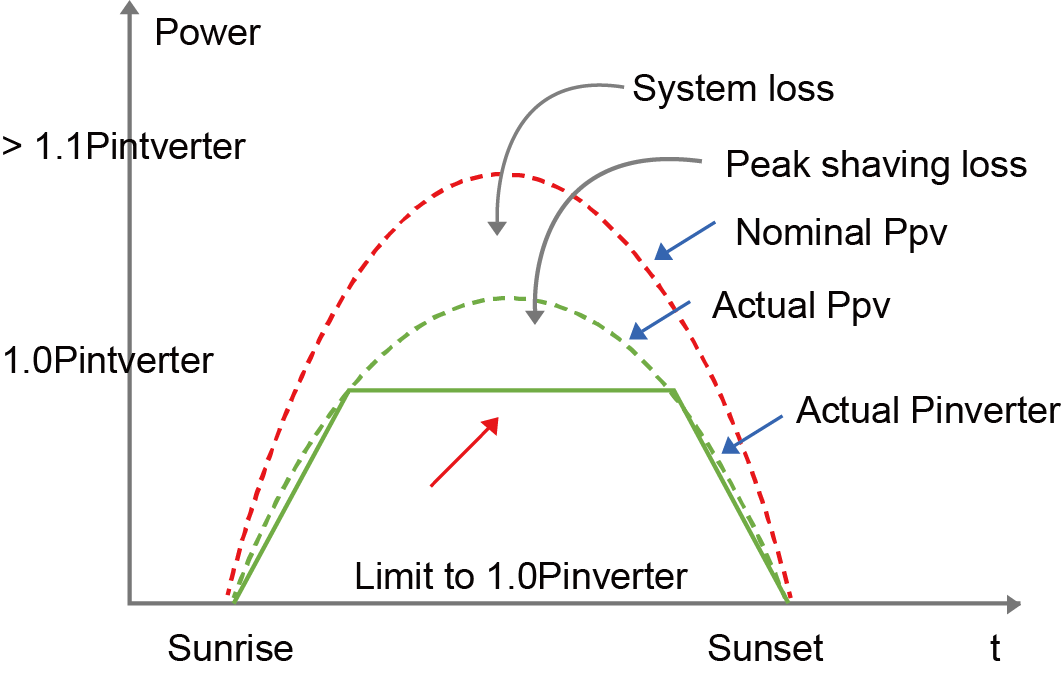

Photovoltaic power generation, has a fluctuating relationship between its power output and its working voltage, that is, in the actual power conversion, control of the maximum power output needs to be realized first.

Fig.6 Power conversion in PV power generation:

(Blue) Micro-inverter (Green) String inverter (Red) Centralized inverter

**2.Magnetics Applications in solar energy**

**2.1 MPPT (or Power Optimizer)**

The development of photovoltaic cells has gone through several technical iterations, in the latest 6.0 era represented by 210 cells (210mmx210mm), a single chip power output of 10~12W can be achieved at an irradiation intensity of at 25°C.

Usually, the specification of the PV will provide the open circuit voltage (Voc), short circuit current (Isc), voltage of maximum power point (Vmp) as well as the maximum power point current (Imp).

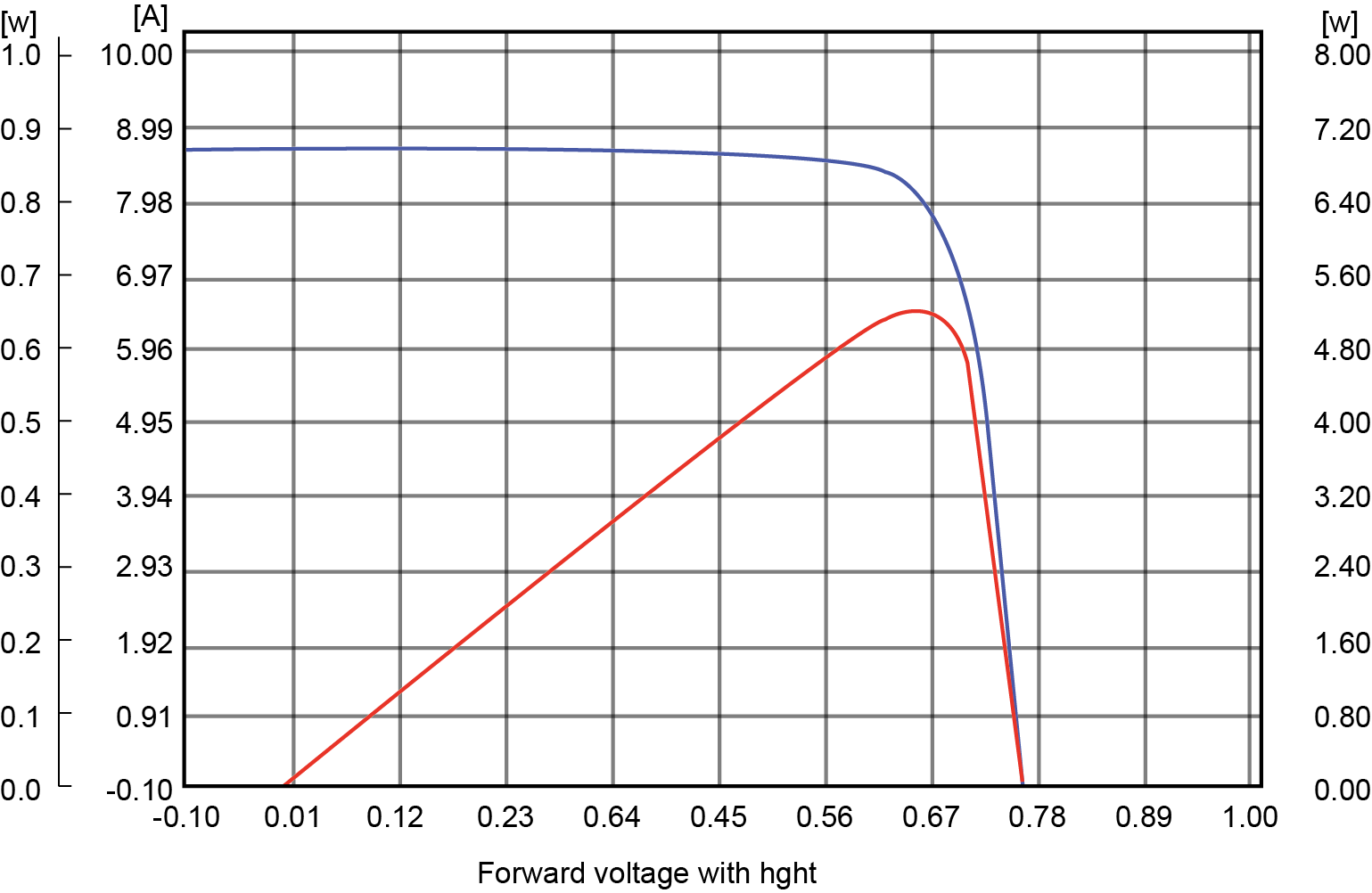

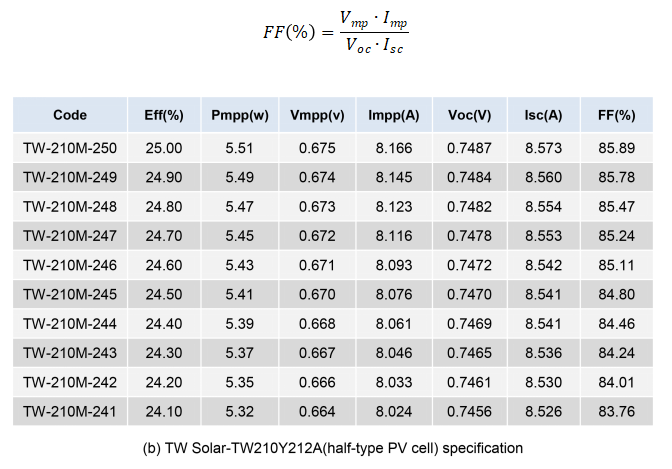

Fig.7 210 PV cell- (a) I-V curve (b) Specification (TW Solar-TW210y212A (half-type PV cell))

Although MPPT can be implemented in various ways, from the circuit form, the adjustment mode is basically realized by the Boost circuit.

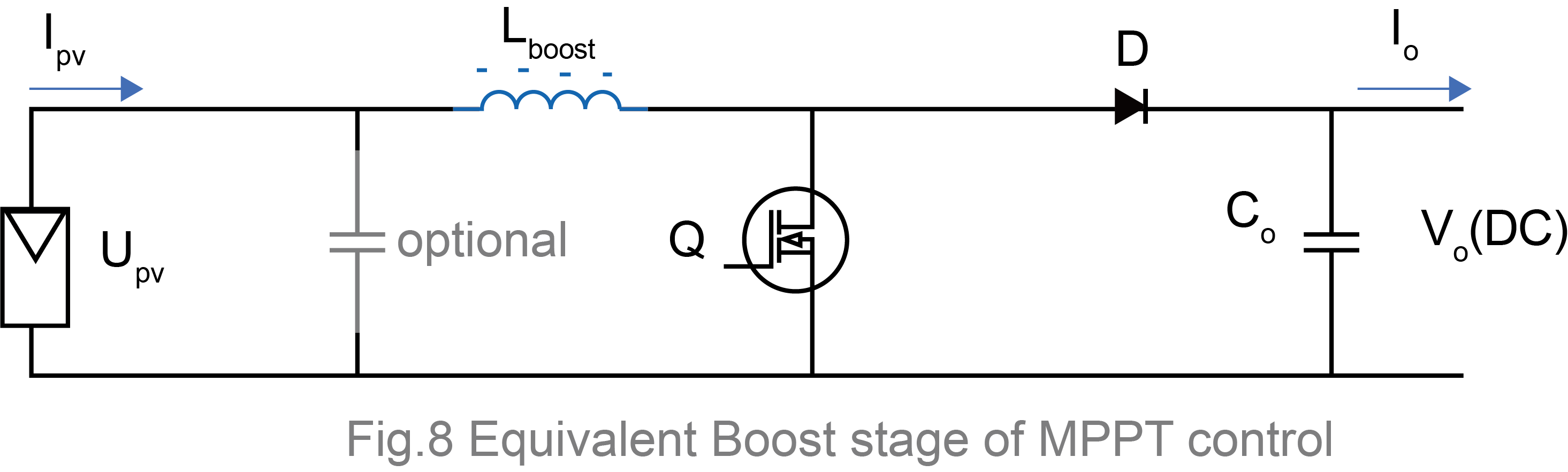

Fig.8 Equivalent Boost stage of MPPT control

The boost inductance required by the MPPT control should meet the requirement that the converter circuit is in CCM operation (continuous inductor current mode), so that the PV can operate in the best state and the input bypassing capacitor can be reduced at the same time. The inductance value should be large enough to reduce the influence of switching FET-Q in MPPT control.

Eg.1: When ignoring conversion efficiency, if the DC-link will supply an inverting power of 700Vx1A, the maximum power the PV installation can support is at 700W = 170Vx4.12A, switching frequency is 20KHz, if the open circuit voltage of the PV cell is Uoc = 195V, then:

The corresponding minimum inductance required is:

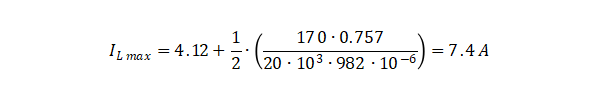

The maximum inductor current is:

The RMS value of inductor current is:

Accordingly, the parameters required for the boost inductor can be defined as 1mH, saturation current 9A, and temperature-rise current 7A (40K temperature rise) with appropriate margins. For the boost inductor, the maximum voltage at both ends is the higher value between and , which is 530V and therefore can be set to 600V. For PV terminal circuits, the Category II transient overvoltage range is defined in IEC 62109-1 and is suitable for 2500Vdc transient overvoltage, so the 1.6mm clearance (eg. Pin to pin distance), needs to be met.

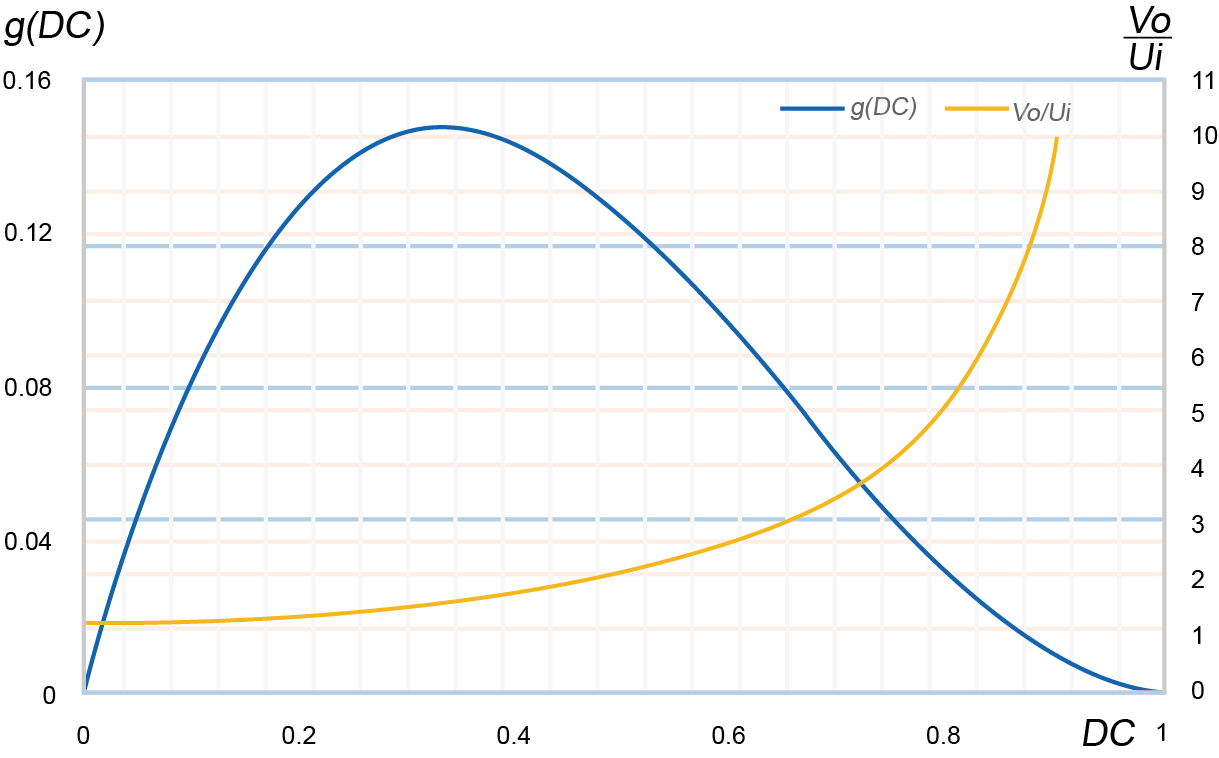

Fig.9 Inductance requirement for boost inductor and voltage gain versus Duty cycle (DC%)

The relationship between the inductance value and DC% is preset in the above minimum inductance value requirement for the boost inductor, determined by Fig.8 shows the influence of DC% on inductance requirement and its simultaneous influence on voltage gain .

The main available switching FETs and Diodes can be divided into three categories: MOS, SiC, and GaN, the main applicable voltage ranges are shown in Fig.9.

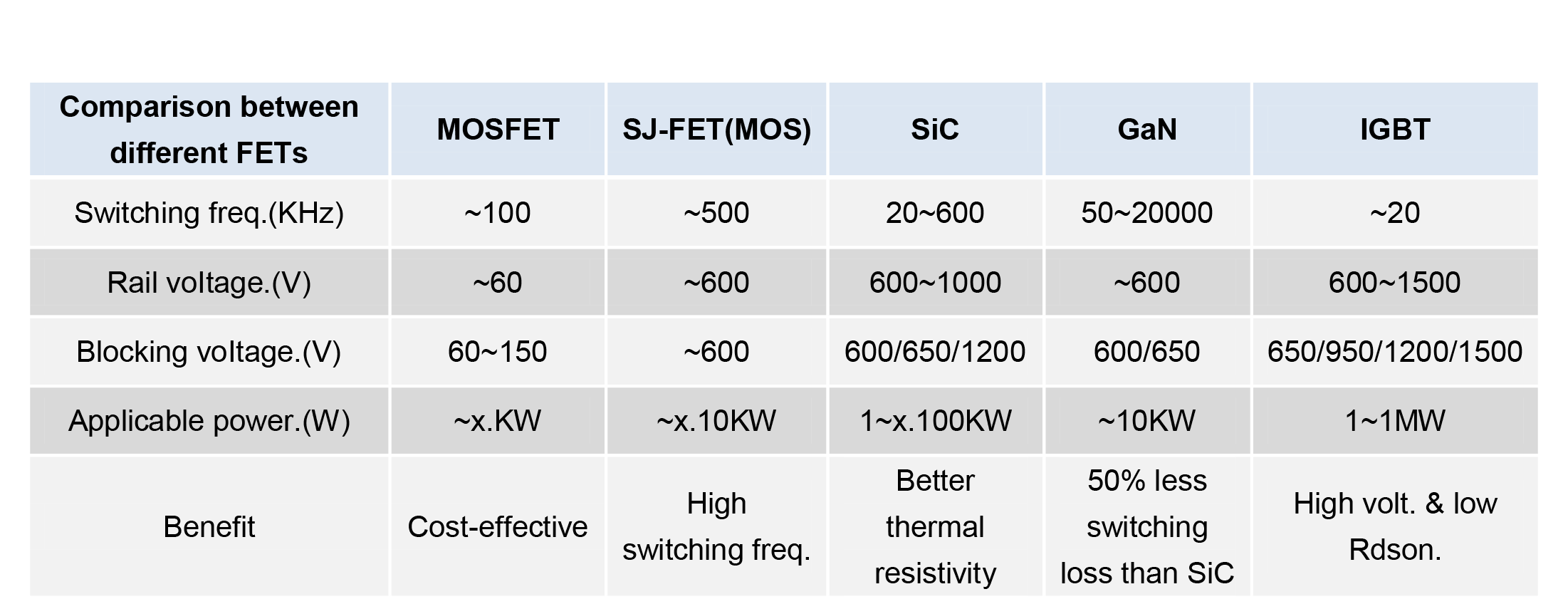

Fig.10 Comparison of the applicable range of different types of switching FETs

Eg.2: When ignoring conversion efficiency, if the DC-link supplies an inverting power of 400Vx2A, the maximum power the PV installation can support is 800W = 60Vx13.33A. Switching frequency is 100KHz, and if the open circuit voltage of the PV cell is Uoc = 70V, then:

The corresponding minimum inductance required is:

The maximum inductor current is:

The RMS value of inductor current is:

When considering the inductor design, choose a limited package size, because the ripple current ratio is:

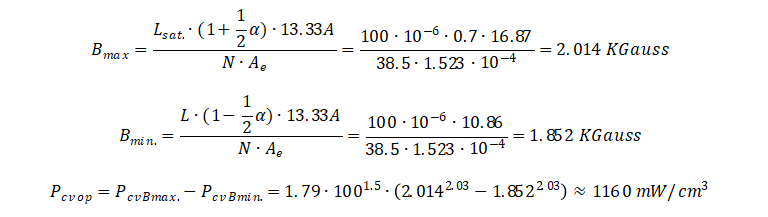

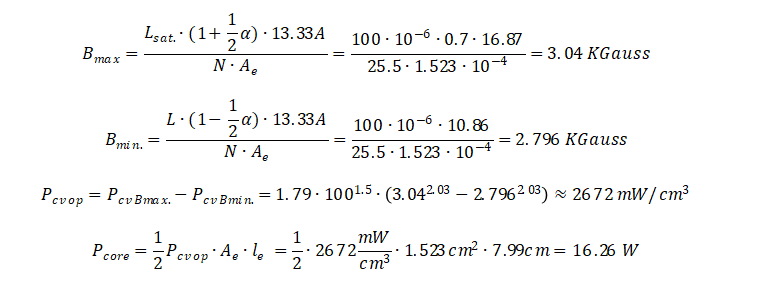

Taking Eg. 2 as an example, assuming the effective cross-sectional area provided by the selected magnetic core is and the effective magnetic circuit length is . If the maximum inductor current allowed at minimum inductance is its saturation current, its maximum working flux density is:

And the minimum working flux density is:

According to the core loss curve, the core loss will be approximated as:

Here, “the maximum allowable inductor current at a minimum inductance is its saturation current”. However, this is not always the case. In an actual working circuit, as long as the guaranteed maximum current placed in the core material under the DC Bias curve is far from its saturation point, just check the following relationship if it is satisfied or not:

Therefore, it is more like an additional design margin, that is taking the maximum possible power loss for evaluation. Besides the core loss, the copper loss will be approximated with only the skin-effect being considered for preliminary evaluation:

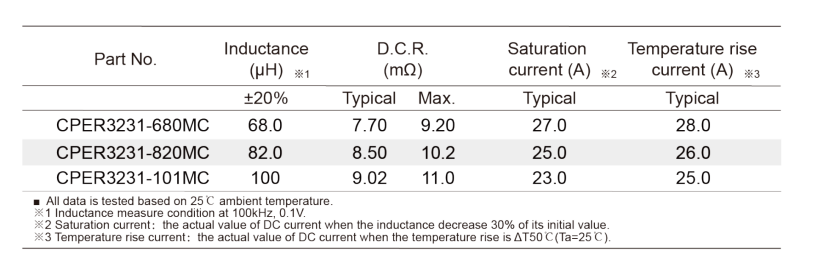

Taking the example of CODACA inductor CPER3231-101MC for Eg.2，the specifications listed below are key parameters with manufacturer definitions:

The corresponding ripple current will be:

The maximum inductor current is:

When inductance drops by 30%, the ripple current will rise 43% and it will be , the corresponding maximum current will be . It is smaller than spec. (23A), so the above estimation could be taken as a maximum loss condition. The power loss calculation follows as:

The RMS value of inductor current is now:

Thus, the total loss is 17.88W and the efficiency loss is approximately 2.24%.

In order to achieve a lower loss, within the limited package size, it is necessary to increase the inductance value as much as possible in order to exchange for a lower ripple current amplitude.

In this example, the saturation current and temperature-rising current are still high, and space is left for adjusting the number of turns and permeability to meet the requirements for optimal loss: adjustments are made on the basis of existing products: increase the coil turns to N=38.5, and the permeability is reduced to maintain the same L value: (the actual available material is standard 40ur)

The corresponding DC resistance is adjusted to approximately (based on same volume of copper):

Adjusted power loss as below:

Verify if the core is saturated or not:

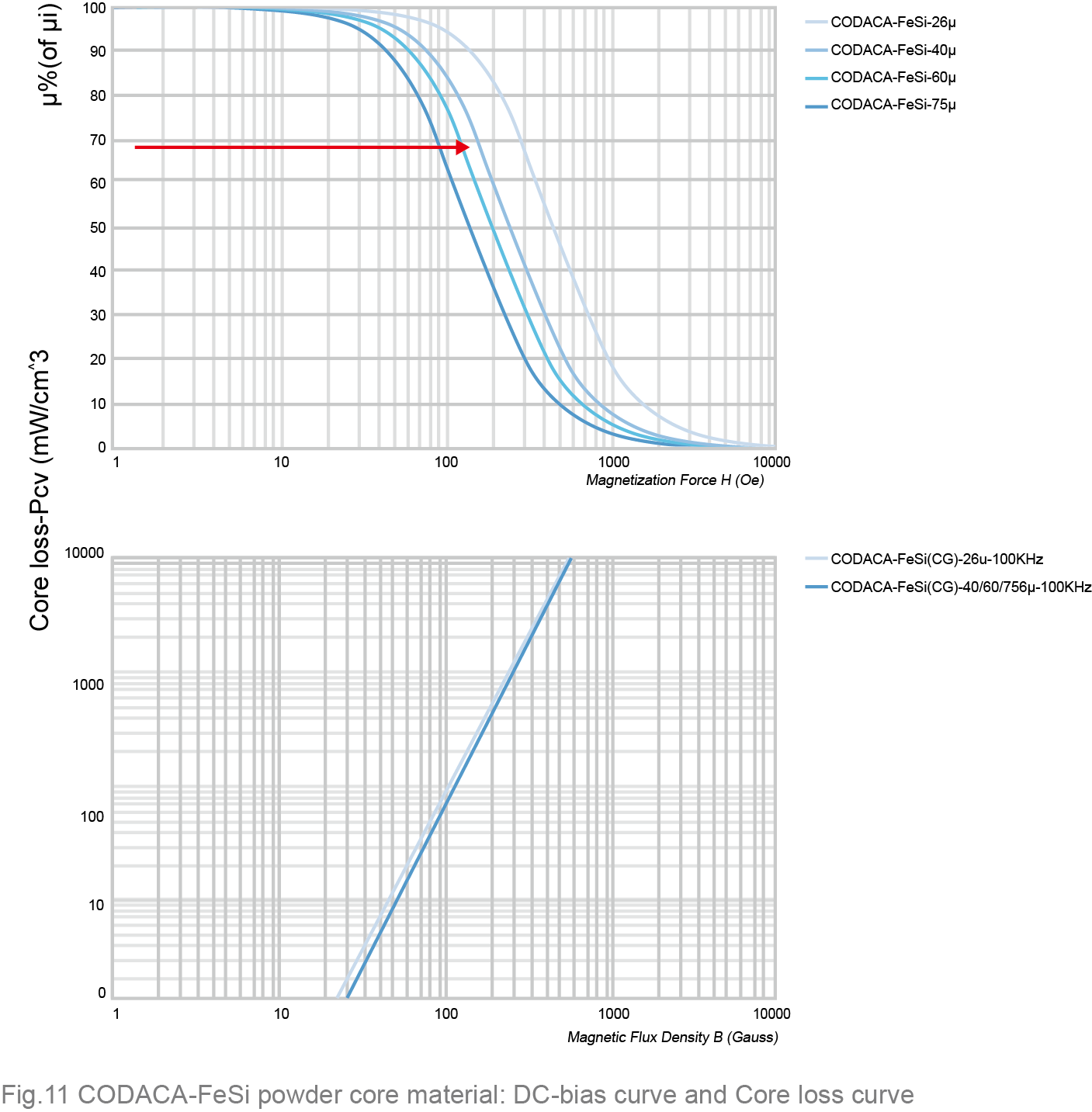

The core saturation can be determined by the DC-bias curve of the core. The calculation is valid because the core has not reached the saturation point. Then the power loss after adjustment is:

Now the total loss is 10.8W and the efficiency loss is 1.35%. Still, based on: 1, the core is still far away from the saturation point after decreasing permeability; 2. The relative ratio of copper wire loss is still not high, and the inductor can continue to optimize the loss by increasing the number of turns and decreasing the permeability, or leveraging the package size and going with a higher inductance value.

Micro-inverter PV applications often plug into local energy storage cells to achieve optimal wave equalization of power, so that the voltage of the DC bus can be adjusted according to the connected battery series, such as 12V, 24V, 48V or a higher battery pack voltage. Such applications generally use flat copper wire wound inductors or even molded inductors at lower power levels.

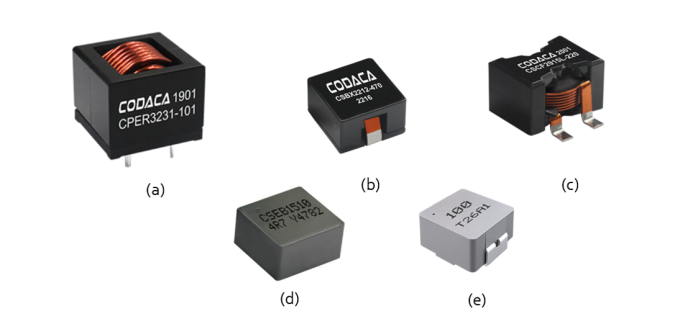

Fig.12 CODACA product series: (a)CPER (b)CSBX (c)CSCF (d)CSEB (f)CSHB

**2.2 Other magnetics in photovoltaic power generation applications**

MPPT for the isolation of photovoltaic inverter application (micro power inverter), flyback or full bridge ZVS soft switching topology, correspondingly needs a design power transformer and a LLC resonant inductor; the material of the magnetic core selection generally will utilize a MnZn ferrite (air gap) to reduce the power loss.

In the distributed photovoltaic applications, isolators’ adopting the dielectric isolation is given priority to drive the corresponding switch FETs. The gate drive transformer is basically independent and needs to be designed according to the corresponding application. In the inverter phase, filter inductors with large inductance and large volume, also known as ACL, are usually configured to correspond to DCL inductors used for PV terminal input to to reduce switching noise and isolate the noise path between the PV power generation terminal and the power grid.

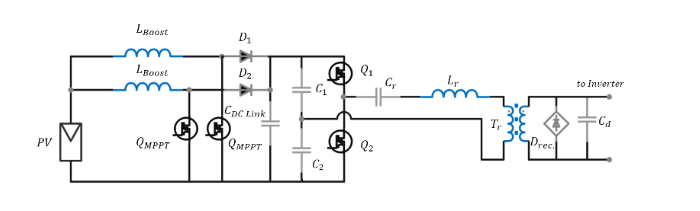

Fig.13 Interleaving boost MPPT plus half-bridge LLC resonant conversion

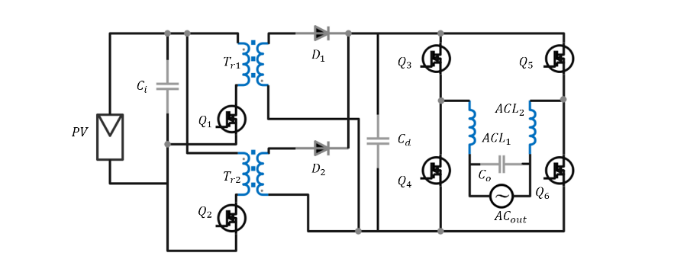

Fig.14 Full-bridge flyback MPPT plus full-bridge inverter for AC output

**3.CODACA Magnetics Proudcts for Solar Energy Applications**

Founded in 2001, Shenzhen CODACA Electronics Co., LTD. (CODACA), has been actively engaged in R&D magnetics for serving global solar energy clients integrating several product line series into automotive components, high current inductors, and molded inductors，details please see Figure14.CODACA proudcts lines by September 2022

CODACA has been supporting clients in energy market by magnetic core materials and power inductors for over 20 years. CODACA has helped clients meet their application specific requirements to optimized their design. Plus, our quick delivery and flexible customization continues to gain customer recognition by supporting the solar market’s need for new technology.

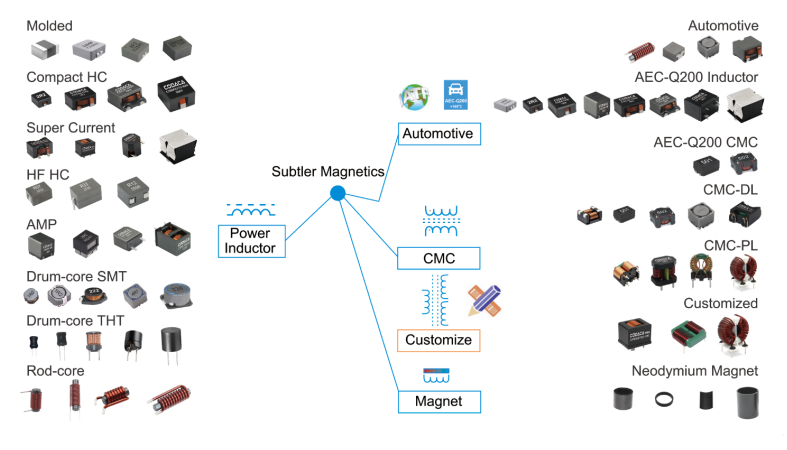

Fig.15 CODACA product lines by September 2022

**CODACA online design tools**

To help customers in photovoltailc area effectively calculate inductor losses and simplfy the selection of magetics, CODACA offers an online loss calculation tool, and several product comparison screening tools. Please visit www.codaca.com to quickly get your reliable and high performace magenetics for your design which CODACA has successfully supported global customers’ innovative designs in over 20 years.
