May 30, 2025 – CODACA, a leading magnetics supplier, has launched the new CSHN series molded inductors designed specifically for AI servers.
The CSHN series offers an ultra-low inductance range of 56 to 82 nH, with a high saturation current capability of up to 130A, a temperature rise current of up to 90A and an extremely low DC resistance to meet the miniaturization, high density, and low power consumption requirements of AI servers.
This new series has an operating temperature range of -55°C to +150 °C and is available in 0706 and 1007 sizes.
These molded inductors are manufactured with a shielded construction, using a hot pressed process with metal soft magnetic powder, and offer exceptional power density, high saturation current, outstanding reliability and excellent EMI suppression. These attributes make the CSNH series an ideal choice for use in AI servers, GPU power modules, and other high-reliability power systems, offering robust support for the development of AI technology.

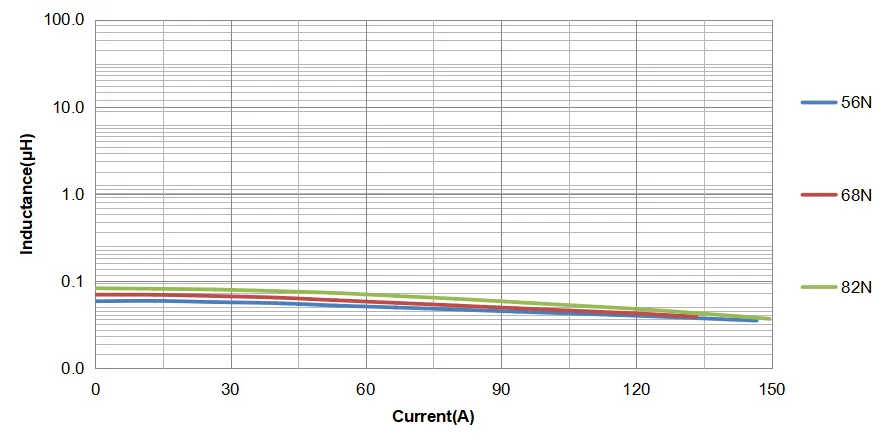

Saturation Current Curve

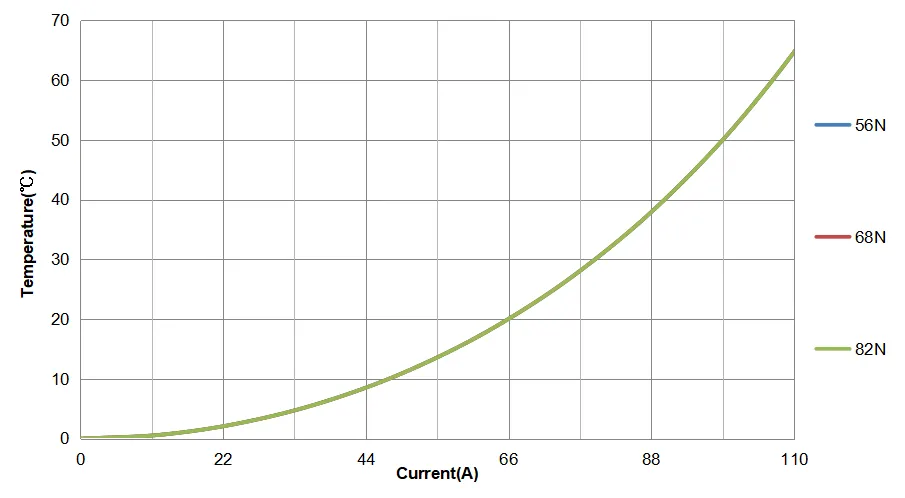

Temperature Rise Current Curve
1. Features
*Magnetic shielded structure, and customizable designs
*Low loss, high efficiency, wide application frequency
*Lightweight design, save space, suitable for high density SMT
*Molded by low loss alloy powder: low impedance, small parasitic capacitance
2. Applications
*AI servers
*Intelligent robots
*Drones
*IoT Gateway
3. Environment Standard
The CSHN series features halogen-free, RoHS and REACH compliant.
4. Product Status
As with all parts in CODACA, CSHN series has been in mass production and lead time is 4~8 weeks.
