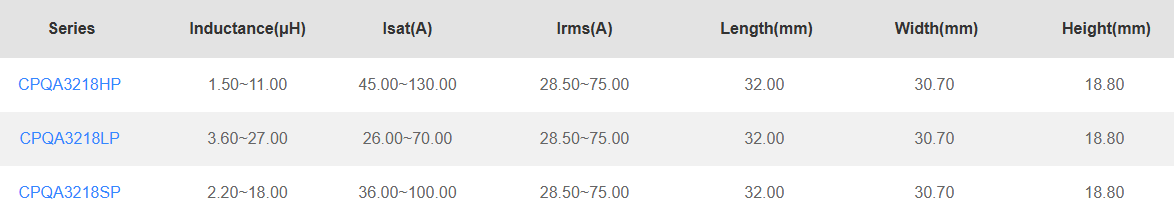

CODACA's high current power inductor CPQA series designed with low loss magnetic core features excellent soft saturation characteristics to withstand higher peak currents, with a saturation current up to 130A. It’s winding by flat wire with low DC resistance and high current, achieving low temperature rise and high efficiency. The inductance value and DC bias characteristics are less affected by temperature making it ideal for working stably in high temperature up to +155 ℃ with no thermal aging problem.
The through-hole design of three terminals increases the welding strength resulting in excellent anti-vibration ability.The compact design save PCB space, achieving maximum output power in a small size and widely used in high-power density power supply systems.
Features:
◾ Flat wire, low DCR.
◾ Very low loss in high frequency.
◾ Compact design, saves PCB space.
◾ Magnetic shielded structure, reduce EMI.
◾ Excellent DC bias capability, handle peak current.
◾ Inductance value and DC bias, less affected by temperature.
Applications:
● DC-DC converters
● New energy
● Industrial control
● High current switching regulators
