Hot Press Molding Power Choke VSHB0754T Series for Automotive Applications



Molding Power Choke

Oct 22,2022, Shenzhen-CODACA, the global leading high current power inductor manufacturer has launched a new automotive-grade high current power inductor VSHB0754T series, which is available in 15 inductance values from 1.5μH to 68μH. It is qualified for AEC-Q200 Grade 0 (-55℃~+165℃ ambient), making it ideal for automotive electronics, DC-DC converter energy storage and high current filtering, OBC and other high-temperature applications.

Hot Pressing Molding with High performance

VSHB0754T series designed with composite structure and hot pressing molding, which has lower resistance value and effectively eliminates the risk of layer-to-layer short. The saturation current is from 2.4Amps to 14.2Amps, the soft saturation is stable over temperature and enables high peak current handling. Magnetic shielding reduces EMI at high switching frequencies.

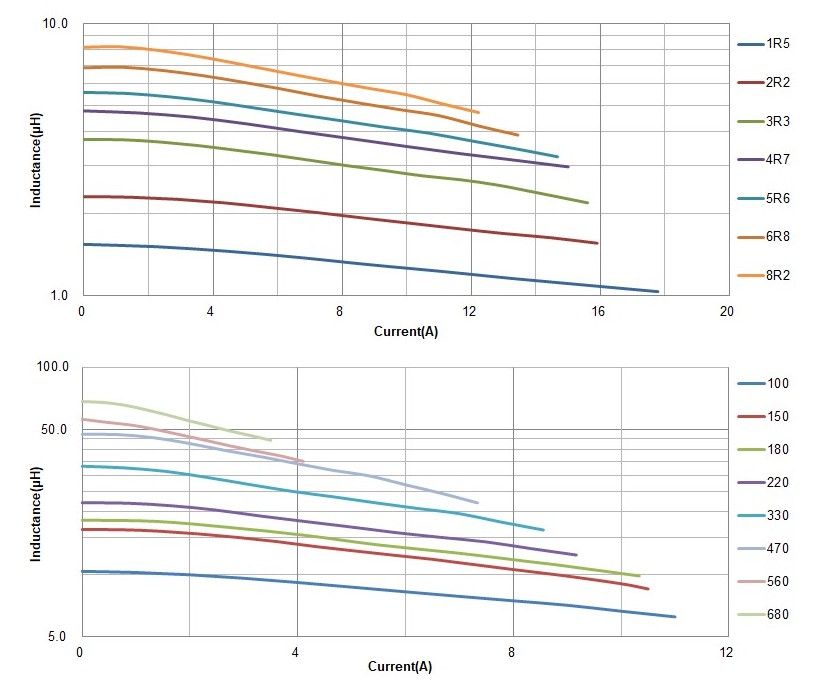

Saturation Current Curve:

power inductor

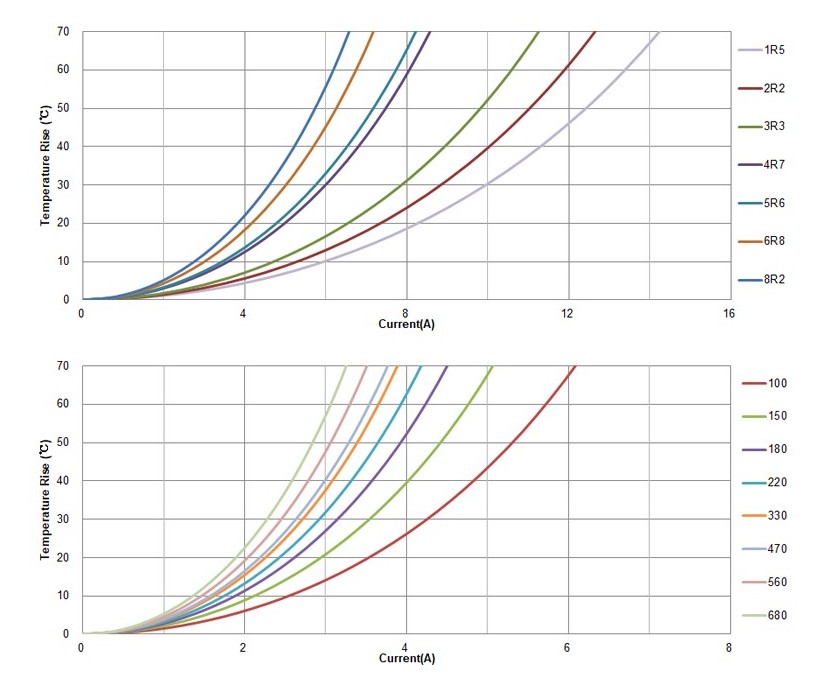

Temperature Rise Current Curve:

high current power inductor

Environment requirement

VSHB0754T series SMD inductor are RoHS/REACH compliant and halogen-free, and also can provide AEC-Q200 test report.

Production status

VSHB0754T series fixed inductor  have been in mass production lead time only 6 weeks.

For more information or samples, please contact us or search VSHB0754T and use CODACA online design tool to check losses.

VSHB0754T Series:大电流电感CPEX新增CPEX2017L、CPEX2022L两大系列(图4)VSHB0754T.pdf
