CODACA's inductor increases power efficiency in energy storage applications

Date:

2023-02-25

CODACA's CPEX4141L series super high-current power inductor is available with inductance values ranging from 27μH to 100μH, high saturation current of up to 60 A with a size of 41.5 mm x41.0mm x 39.0 mm.

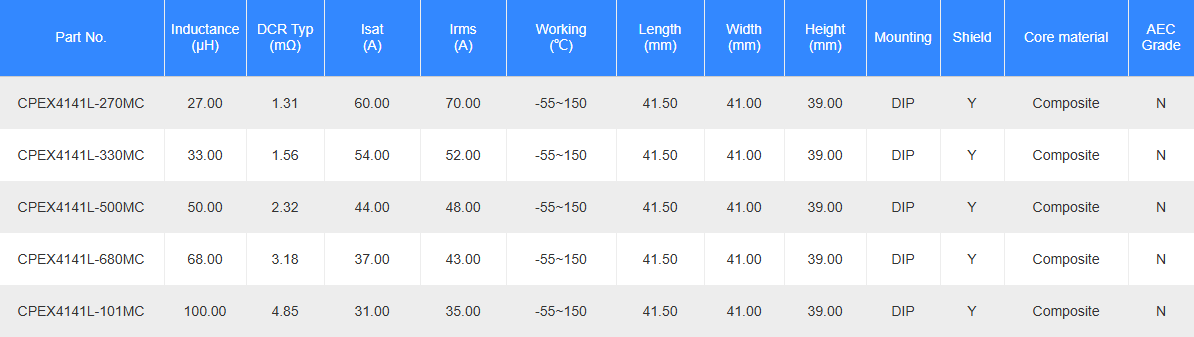

CPEX4141L series super high-current power inductor Product Parameter


The high current power inductor CPEX4141L is designed with flat wire and and the utilization rate of the magnetic core winding window is greater than 80%, it can reduce the DC resistance.

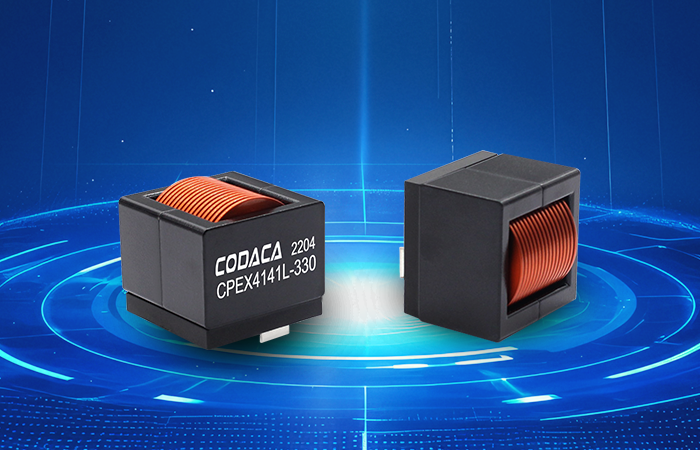

CPEX4141L series super high-current power inductor


The magnetic powder core with soft-saturation characteristics can withstand high peak current and offers high saturation current and ultra-low AC losses to minimize power losses and increase power conversion efficiency. This makes the inductors perfect for high-temperature and high-power applications such as PV inverters, power supply, motor controllers, and more.


Features:

● Excellent DC bias capability handles peak current

● Flat-wire winding enables a low DC resistance

● Compact design, saving PCB installation area

● No thermal aging in high-temperature applications

● Operating temperature range: -55°C to +150°C (includes coil’s self-heating)


Applications:

◾ DC/DC power supplies

◾ Industrial controls

◾ Energy storage power supplies, charging pile power supplies

◾ Battery testing equipment, photovoltaic inverters

◾ Hybrid vehicle applications
