Oct 22, 2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer has introduced CSHB0410 series ultra-thin flat wire molding power choke, the size only 4.4millimeter by 4.2millimeter by 0.8millimeter, the lightweight design is suitable for high-density mounting and can save the PCB space. The inductance value ranges from 3.3microhenry  to 10.0 microhenry.

Appearance and Dimensions (mm):

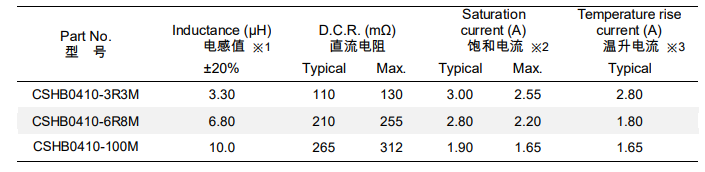

Electrical Characteristics:

Hot Pressed with High Performance

Molding power choke CSHB0410 series is hot pressed by alloy powder and has excellent soft saturation characteristics. The coil winding by flat wire provides ultra-low DC and AC resistance to achieve high power at high frequency, low-temperature rise, and minimize the power loss. The working temperature is -40℃～+125℃.

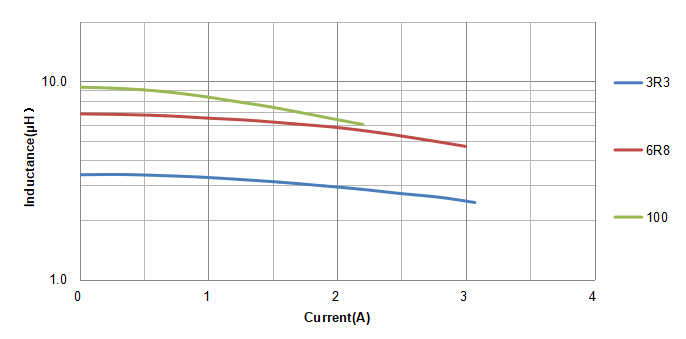

Saturation Current Curve:

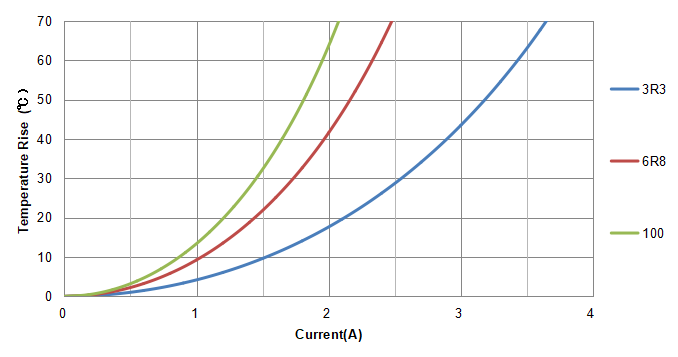

Temperature Rise Current Curve:

CSHB0410 series composite construction provides magnetic shielding and minimizes audible buzzing, It's also feature with excellent anti-electromagnetic interference ability. The ultra-thin design can resist 100G gravity acceleration mechanical shock and 5G vibration shock.

Applications

CSHB0410 series molding power choke is widely used in smart products, tablet products, networks, communication, etc.

Environment Standard

CSHB0410 series molding power choke features RoHS/REACH compliant and halogen-free.

Production statue

As with all CODACA parts, high current power inductor CSHB0410 series has been in mass production and samples are available.

Visit CODACA online design tool to check losses now.

CSHB0410 Series：CSHB0410.pdf
