September 2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer has released the CSCM family of high-performance, high current power inductor includes three new series: CSCM1265, CSCM1460, and CSCM1480 series.

All CSCM family inductors feature small size with three terminal weldings, low DC resistance, and magnetically-shielded package to minimize EMI. They are available with more than 10 inductance values from 0.3µH to 47µH, saturation current ranges from 2.4 Amps to 87.6 Amps under a 25°C working environment.

Small size with three terminal welding

CSCM1265, CSCM1460 and CSCM1480 series fixed inductors with small size :

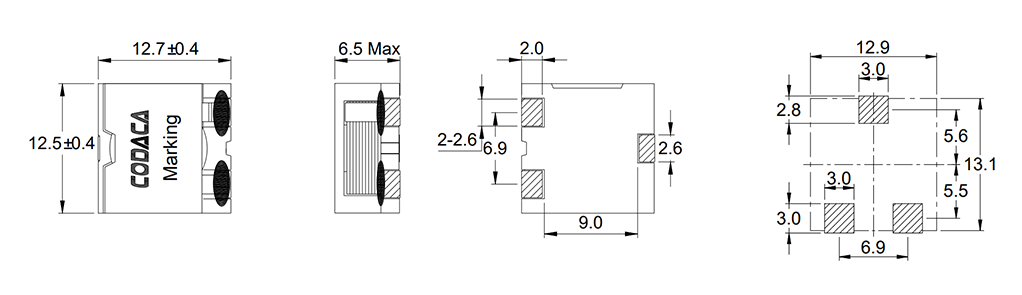

CSCM1265

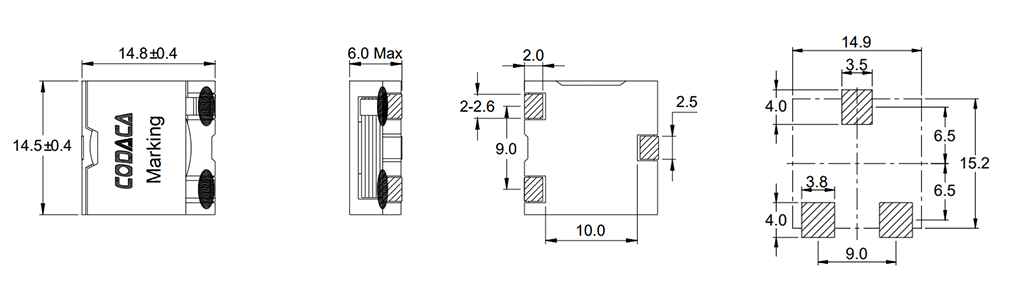

CSCM1460

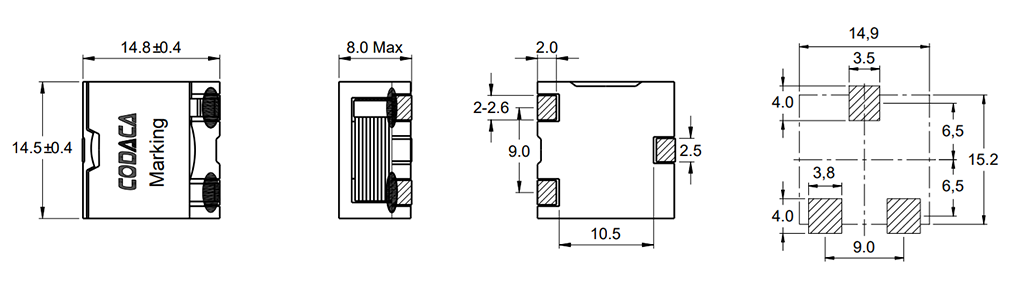

CSCM1480

The addition of a third terminal welding position on the base of the product can effectively improve the mechanical stability of installation on the PCB.

Exceptionally low DC resistance

CSCM Family SMD inductor features a flat-wire construction, resulting in exceptionally low DC resistance and further enriched the product portfolio. The DC resistance ranges from 0.87mΩ to 23.5mΩ while the working temperature is form -40°C to +125°C. All above can be widely applied in various power supplier, including point-of-load power (POL) converters, DC-DC converters, high-current switch-mode power supplies, inverters in photovoltaic systems etc. The CSCM Family inductors are qualified to AEC-Q200 Grade 1 (−40°C to +125°C) standard.

Environment standard

High current power inductor CSCM Family features RoHS, REACH compliant, Halogen-free.

Production status

As with all CODACA parts, CSCM Family has been in mass production. Samples and complete technical specifications are available to clients after inquiry.

CSCM1265 Series：CSCM1265.pdf

CSCM1460 Series：CSCM1460.pdf

CSCM1480 Series：CSCM1480.pdf
