THT Compact High Current Power Inductor CPEX2020A



Nov.22,2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer, has launched a THT high current power inductor CPEX2020A series: designing with magnetic powder core technology which  provides stable inductance and saturation over operating temperature, and with extremely low core losses.

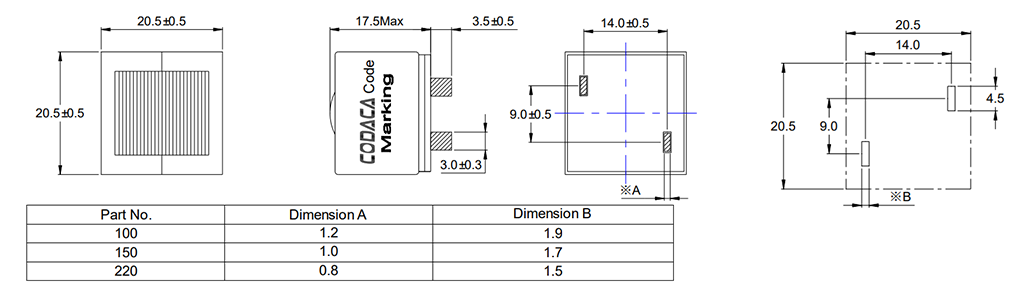

CPEX2020A Appearance and Dimensions (mm):

THT Compact High Current Power Inductor CPEX2020A

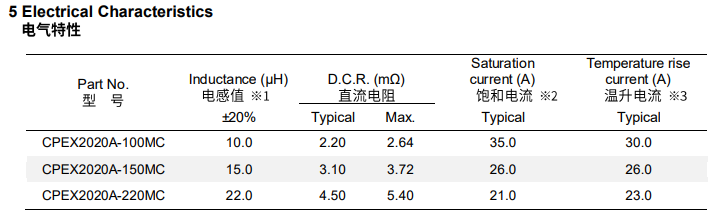

CPEX2020A Electrical Characteristics:

Power Inductor

Soft saturation and high performance

The CPEX2020A series offer soft saturation characteristics to withstand high current spikes while THT mounting provides a low risk of whisker growth. They also offer exceptionally low DCR and ultra-low AC losses to minimize losses and reduce temperature rise.

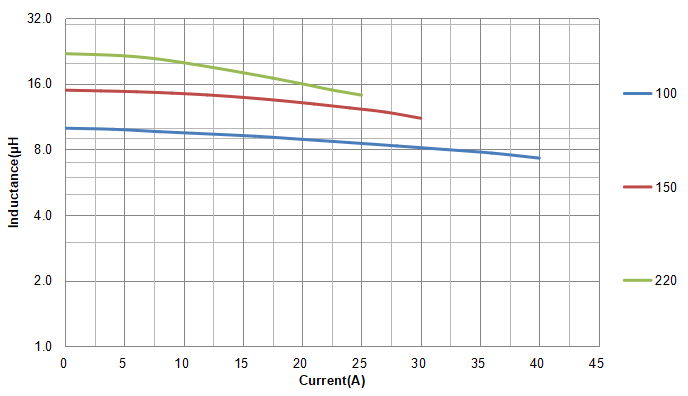

 CPEX2020A Saturation Current Curve:

Power Inductor

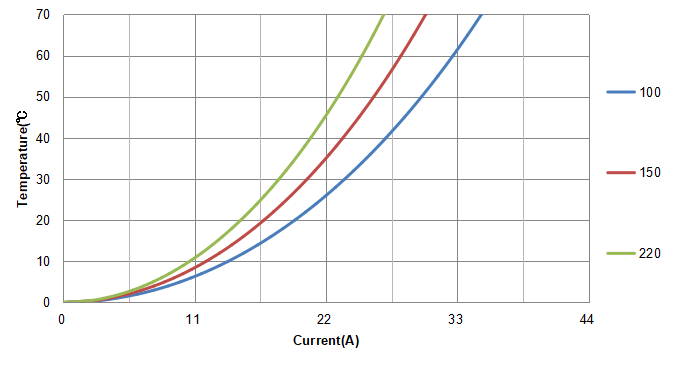

CPEX2020A Temperature Rise Current Curve:



The CPEX2020A series are available in three inductances from 10.0 µH to 22.0 µH, with saturation current ranging from 21 to 38 Amps under 25°C working environment and exhibiting no thermal aging issues, All above make them ideal for solar energy, wind energy, and hybrid vehicles applications.

Environment requirement

CPEX2020A series high current power inductors features RoHS/REACH compliant and are halogen-free.

Production status

CPEX2020A series fixed inductor have been in mass production.

For more information or samples, please contact us or use CODACA online design tool for easy sorting out matching part numbers as well as inductor loss estimation.

CPEX2020A Series:大电流电感CPEX新增CPEX2017L、CPEX2022L两大系列(图4)CPEX2020A.pdf
