Oct 22, 2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer has developed a new high current power inductor CPEX series that has been extended by 2 sizes, which are CPEX2017L and CPEX2022L. They feature a smaller package size of only 20.5*17.5*20.5mm, the inductance value range expands from 2.7μH to 33.0μH and the saturation current range from  21.0Amps to 95.0 Amps. The new sizes meet the power supply design requirements of small volume and high power density.

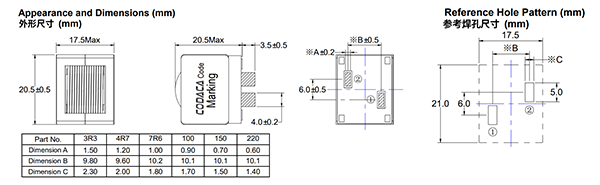

CPEX2017L Appearance and Dimensions (mm)

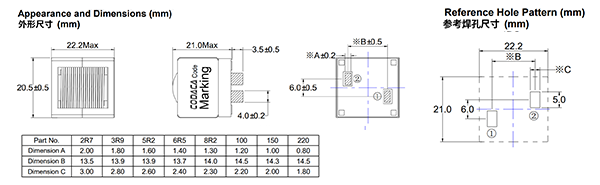

CPEX2022L Appearance and Dimensions (mm)

New Magnetic Powder Core with Low Loss

High power inductor CPEX series designed with new magnetic powder core, feature low magnetic core loss and excellent soft saturation characteristics to withstand the high peak current. The flat wire can provide extremely low DC and AC resistance, realize high power, and low-temperature rise, and work continuously in high current applications.

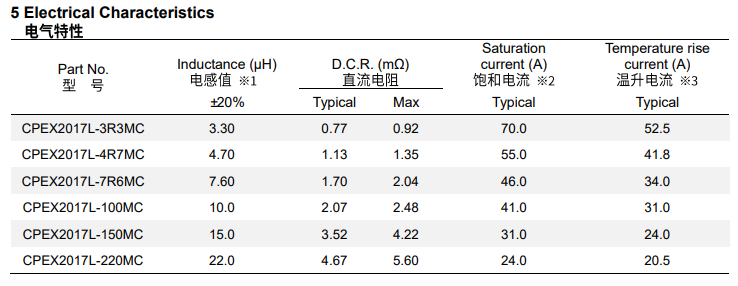

 CPEX2017L Electrical Characteristics

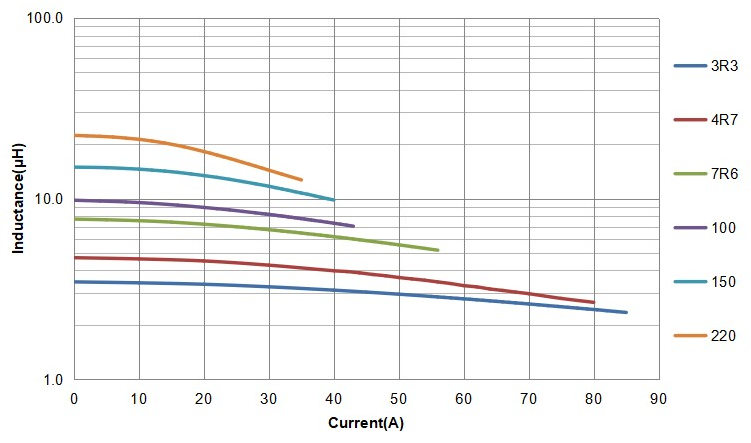

 CPEX2017L Saturation Current Curve

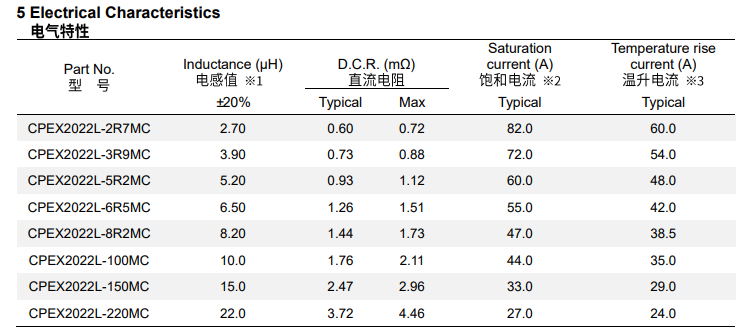

 CPEX2022L Electrical Characteristics

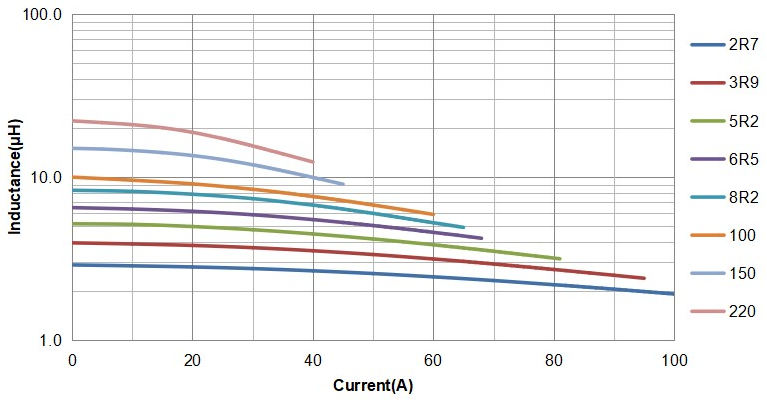

 CPEX2022L Saturation Current Curve

In addition, the high current inductor CPEX series has excellent temperature stability characteristics and can work stably in a high-temperature environment.

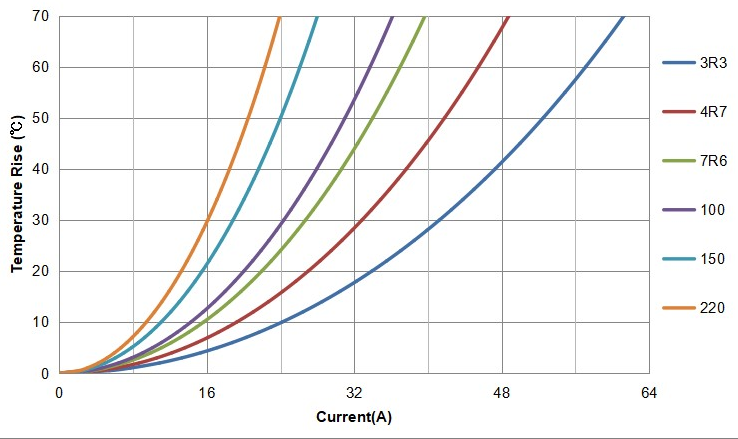

CPEX2017L Temperature Rise Current Curve

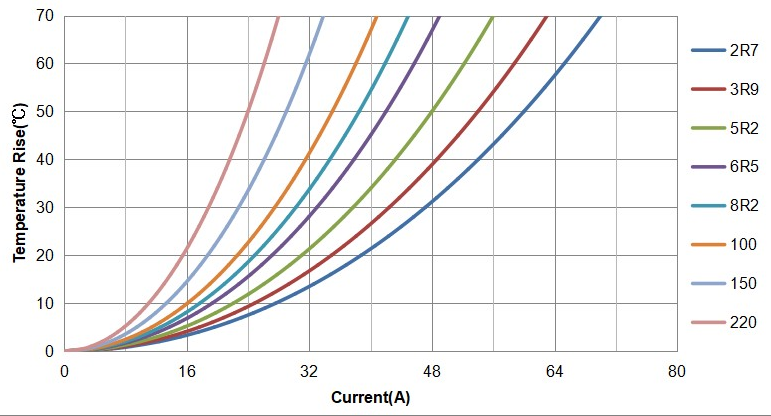

CPEX2022L Temperature Rise Current Curve

Applications:

VRM, high-power DC-DC convertor for new energy;

Automotive electronics;

Energy storage equipment;

Photovoltaic industry, etc.

Factory Support

CPEX2017L/2022Lseries fixed inductor is independently developed by CODACA and customize is available.

For more information or samples, please contact us or search CPEX2017L/2022L and use CODACA online design tool for easy sorting out matching part numbers as well as inductor loss estimation.

CPEX2017L Series：CPEX2017L.pdf

CPEX2022L Series：CPEX2022L.pdf
