Oct 22, 2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer has developed AEC-Q200 Grade-1 CPQ4228 series power inductor designed for high-efficiency power supplies requiring high current and high inductance.
Low loss Mn-Zn Ferrite Core with High Performance
The saturation current of CPQ4228 series is up to 75Amperes with an inductance value range from 6.8 to 470µH. The inside flat-wire winding results in exceptionally low DC and AC resistance, and the manganese zinc ferrite core with low loss characteristic can provide stable inductance and saturation current over operating temperature from -40℃ to +125℃, making it ideal for efficiency critical power conversion over wide operating temperatures.

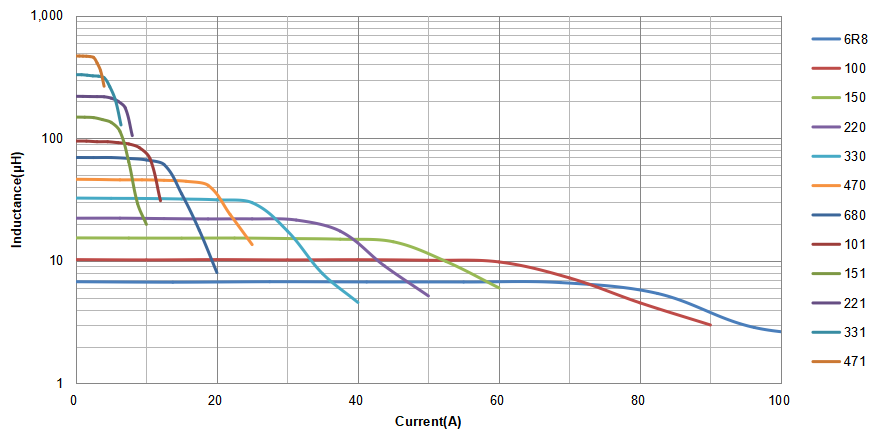

Saturation Current Curve:

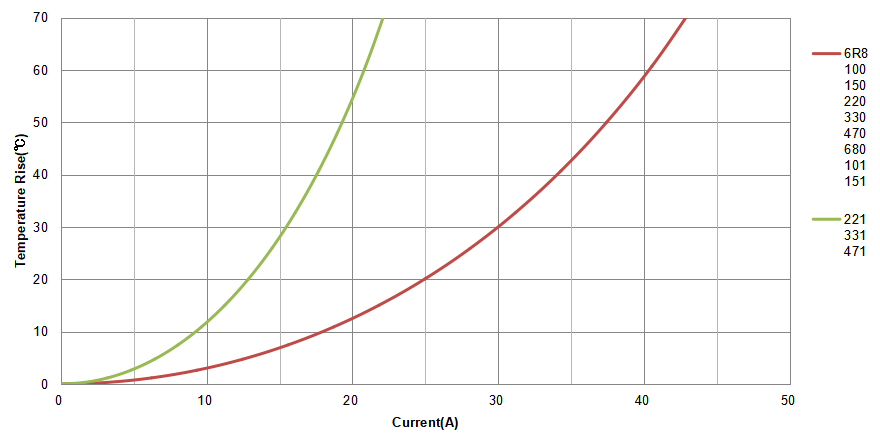

Temperature Rise Current Curve:
Environmental standard
High current power inductor CPQ4228 series features Halogen-free, RoHS, REACH-compliant and also can provide AEC-Q200 test report.
Production status
CPQ4228 series have been in mass production. For more information or samples, please contact us or use CODACA online design tool for easy sorting out matching part numbers as well as inductor loss estimation.

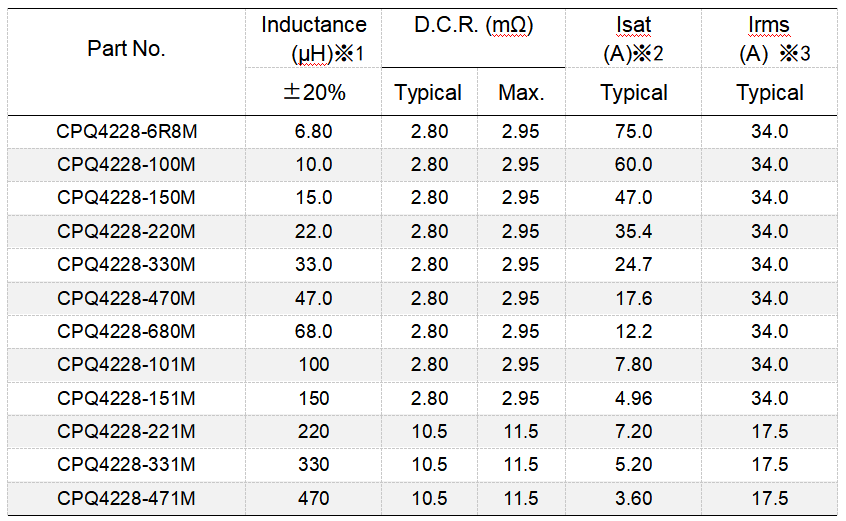

CPQ4228 Series：
CPQ4228.pdf
